Colorset 2-dim test case

case = 'SMR'  # 'SMR' or 'PWR'

imgFile = './serpent/{}/{}_Ref_2D_2g_geom1.png'.format(case, case)
resFile = './serpent/{}/{}_Ref_2D_2g_res.m'.format(case, case)
detFile = './serpent/{}/{}_Ref_2D_2g_det0.m'.format(case, case)

Image(imgFile,  width=400, height=300)
../_images/NEM_DF_6_0.png

Universes within the colorset: - Upper left F12 - 2.6% \(UO_2\) - Upper right Ref - stainless steel (with water for PWR) - Bottom left F2 - 4.55% \(UO_2\) with 8% \(Gd_2\) \(O_3\) - Bottom right F11 - 2.6% \(UO_2\)

Read detector data from Serpent

det = serpentTools.read(detFile)

The values in the detectors are defined on a 102 over 102 grid. The following lines obtain the x-direction y-averaged fluxes

For example, det.detectors['flux_fast'].tallies obtains the fast flux with dimensions of 102x102. The .mean(axis=0) operation averages over the columns (y-averaged). If one wants to change to x averaged, .mean(axis=1) needs to be used.

solvecolumn = 1

tally = det.detectors['flux_fast'].x[:, 1]

if solvecolumn == 1:
    fastHetFlux = det.detectors['flux_fast'].tallies[:,0:51].mean(axis=1)
    thermalHetFlux = det.detectors['flux_thermal'].tallies[:,0:51].mean(axis=1)
    universes = ['F2', 'F12']
else:
    fastHetFlux = det.detectors['flux_fast'].tallies[:,51:].mean(axis=1)
    thermalHetFlux = det.detectors['flux_thermal'].tallies[:,51:].mean(axis=1)
    universes = ['F11', 'Ref']

# Check shape to verify mesh slicing
print(det.detectors['flux_fast'].tallies.shape)

(102, 102)

Read results data from Serpent

xs1, bc1 = GetSerpentRes(resFile, universes[0], timeDays=0)
xs2, bc2 = GetSerpentRes(resFile, universes[1], timeDays=0)

SERPENT Serpent 2.2.1 found in ./serpent/SMR/SMR_Ref_2D_2g_res.m, but version 2.1.31 is defined in settings
  Attempting to read anyway. Please report strange behaviors/failures to developers.
SERPENT Serpent 2.2.1 found in ./serpent/SMR/SMR_Ref_2D_2g_res.m, but version 2.1.31 is defined in settings
  Attempting to read anyway. Please report strange behaviors/failures to developers.

dx, dy = 21.42, 21.42  # cm  - assembly length

Transverse leakage

Bottom Fuel Assembly

trLeakage1 = {}
trLeakage1['nL'] = bc2['eJnet'] - bc2['wJnet']
trLeakage1['nD'] = xs2['diff']
trLeakage1['ndy'] = dy
trLeakage1['sL'] = bc1['eJnet'] - bc1['wJnet']
trLeakage1['sD'] = xs1['diff']
trLeakage1['sdy'] = dy

Solve the bottom fuel assembly node

time_start = time.perf_counter()
nem1 = CartesianNem1D(dx, dy, xs1, bc1, trLeakage1, symbolic=False)
nem1.TransverseLeakageCoef('y')  # obtain the coefficients of the TL
nem1.GetExpansionCoeffs('y', 'diff')
time_end = time.perf_counter()
print('Assembly solution calculated in {} seconds'.format(time_end-time_start))

Assembly solution calculated in 0.07377529999939725 seconds

xvals = np.linspace(-dx/2, +dx/2, 51)
yvals = np.linspace(-dy/2, +dy/2, 51)
flux1 = nem1.GetHomogFlux(yvals)

Change cross section data to compare against CMM transport cross section.

trLeakage1['nD'] = xs2['cmmdiff']
trLeakage1['sD'] = xs1['cmmdiff']

nem1CMM = CartesianNem1D(dx, dy, xs1, bc1, trLeakage1, symbolic=False)
nem1CMM.TransverseLeakageCoef('y')  # obtain the coefficients of the TL
nem1CMM.GetExpansionCoeffs('y', 'cmmdiff')

flux1CMM = nem1CMM.GetHomogFlux(yvals)

Transverse leakage

Top fuel assembly.

trLeakage2 = {}
trLeakage2['sL'] = bc1['eJnet'] - bc1['wJnet']
trLeakage2['sD'] = xs1['diff']
trLeakage2['sdy'] = dy
trLeakage2['nL'] = bc2['eJnet'] - bc2['wJnet']
trLeakage2['nD'] = xs2['diff']
trLeakage2['ndy'] = dy

Solve the top fuel assembly node

time_start1 = time.perf_counter()
nem2 = CartesianNem1D(dx, dy, xs2, bc2, trLeakage2, symbolic=True)
nem2.TransverseLeakageCoef('y')  # obtain the coefficients of the TL
nem2.GetExpansionCoeffs('y', 'diff')
time_end1 = time.perf_counter()
print('Assembly solution calculated in {} seconds'.format(time_end1-time_start1))

Assembly solution calculated in 0.07840810000197962 seconds

xvals = np.linspace(-dx/2, +dx/2, 51)
yvals = np.linspace(-dy/2, +dy/2, 51)
flux2 = nem2.GetHomogFlux(yvals)

trLeakage2['sD'] = xs1['cmmdiff']
trLeakage2['nD'] = xs2['cmmdiff']

nem2CMM = CartesianNem1D(dx, dy, xs2, bc2, trLeakage2, symbolic=False)
nem2CMM.TransverseLeakageCoef('y')  # obtain the coefficients of the TL
nem2CMM.GetExpansionCoeffs('y', 'cmmdiff')

flux2CMM = nem2CMM.GetHomogFlux(yvals)

Plot results

  1. Fast flux distribution

  2. Thermal flux distribution

plt.figure()
Plot1d(xvals-10.71, flux1[0,:], xlabel="position, cm",
       ylabel='Flux distribution',
       fontsize=16, marker="-r", markersize=6)
Plot1d(xvals-10.71, flux1CMM[0,:], xlabel="position, cm",
       ylabel='Flux distribution',
       fontsize=16, marker="--r", markersize=6)
Plot1d(xvals+10.71, flux2[0,:], xlabel="position, cm",
       ylabel='Flux distribution',
       fontsize=16, marker="-b", markersize=6)
Plot1d(xvals+10.71, flux2CMM[0,:], xlabel="position, cm",
       ylabel='Flux distribution',
       fontsize=16, marker="--b", markersize=6)
Plot1d(tally, fastHetFlux, xlabel="position, cm",
       ylabel='Fast flux distribution',
       fontsize=16, marker="-k", markersize=6)
plt.legend(['hom. {}'.format(universes[0]), 'hom. {} CMM'.format(universes[0]) , 'hom. {}'.format(universes[1]), 'hom. {} CMM'.format(universes[1]),'het.'])

<matplotlib.legend.Legend at 0x28b378f5bd0>
../_images/NEM_DF_32_1.png
plt.figure()
Plot1d(xvals-10.71, flux1[1,:], xlabel="position, cm",
       ylabel='Flux distribution',
       fontsize=16, marker="-r", markersize=6)
Plot1d(xvals-10.71, flux1CMM[1,:], xlabel="position, cm",
       ylabel='Flux distribution',
       fontsize=16, marker="--r", markersize=6)
Plot1d(xvals+10.71, flux2[1,:], xlabel="position, cm",
       ylabel='Flux distribution',
       fontsize=16, marker="-b", markersize=6)
Plot1d(xvals+10.71, flux2CMM[1,:], xlabel="position, cm",
       ylabel='Flux distribution',
       fontsize=16, marker="--b", markersize=6)
Plot1d(tally, thermalHetFlux, xlabel="position, cm",
       ylabel='Thermal flux distribution',
       fontsize=16, marker="-k", markersize=6)
plt.legend(['hom. {}'.format(universes[0]), 'hom. {} CMM'.format(universes[0]) , 'hom. {}'.format(universes[1]), 'hom. {} CMM'.format(universes[1]),'het.'])

<matplotlib.legend.Legend at 0x28b39edb310>
../_images/NEM_DF_33_1.png

Reference Discontinuity Factors (RDF)

print('South {}'.format(universes[0]))
print('gr1={:.3f}, gr2={:.3f} NEM'.format(nem1.southDFs[0], nem1.southDFs[1]))
print('gr1={:.3f}, gr2={:.3f} Serpent'.format(nem1.bc['sDF'][0], nem1.bc['sDF'][1]))

South F2
gr1=1.017, gr2=1.074 NEM
gr1=1.026, gr2=1.063 Serpent

print('North {}'.format(universes[0]))
print('gr1={:.3f}, gr2={:.3f} NEM'.format(nem1.northDFs[0], nem1.northDFs[1]))
print('gr1={:.3f}, gr2={:.3f} Serpent'.format(nem1.bc['nDF'][0], nem1.bc['nDF'][1]))

North F2
gr1=1.018, gr2=1.034 NEM
gr1=1.006, gr2=1.057 Serpent

print('South {}'.format(universes[1]))
print('gr1={:.3f}, gr2={:.3f} NEM'.format(nem2.southDFs[0], nem2.southDFs[1]))
print('gr1={:.3f}, gr2={:.3f} Serpent'.format(nem2.bc['sDF'][0], nem2.bc['sDF'][1]))

South F12
gr1=0.995, gr2=0.954 NEM
gr1=1.006, gr2=0.951 Serpent

print('North {}'.format(universes[1]))
print('gr1={:.3f}, gr2={:.3f} NEM'.format(nem2.northDFs[0], nem2.northDFs[1]))
print('gr1={:.3f}, gr2={:.3f} Serpent'.format(nem2.bc['nDF'][0], nem2.bc['nDF'][1]))

North F12
gr1=1.008, gr2=0.974 NEM
gr1=0.997, gr2=0.973 Serpent

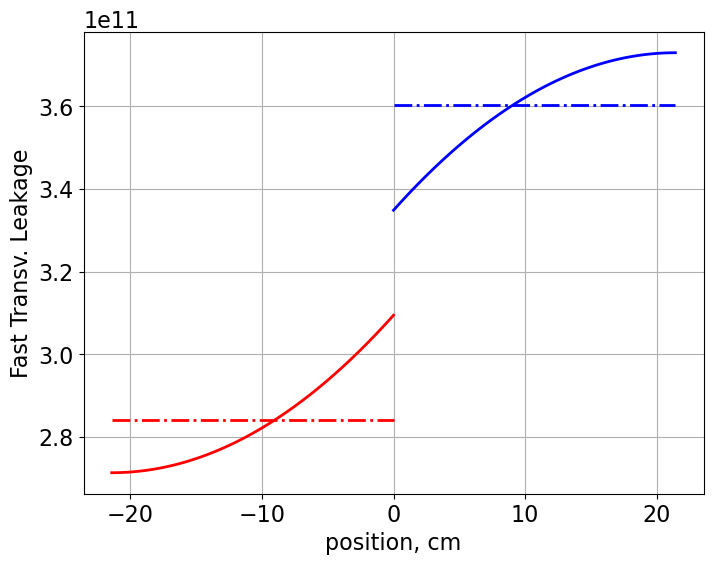

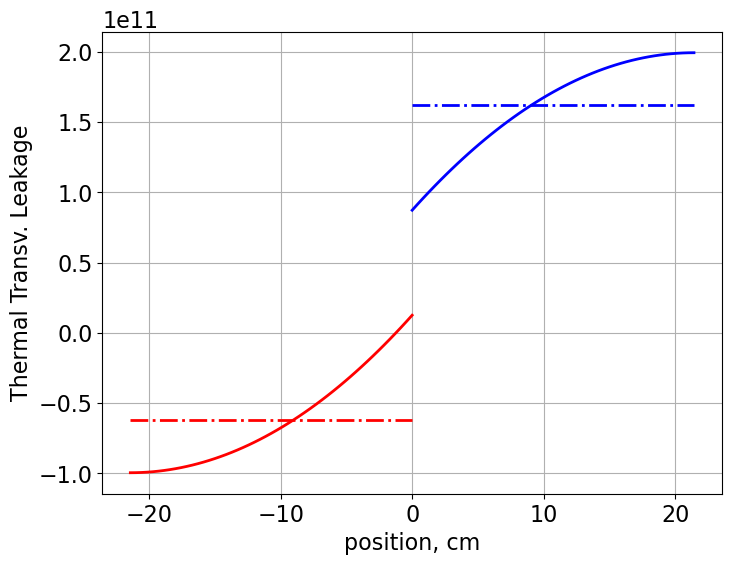

Transverse leakage

Obtain the transverse leakages

trl1 = nem1.GetTrVals(yvals)
trl2 = nem2.GetTrVals(yvals)

avTrL1 = (bc1['eJnet'] - bc1['wJnet'])/dx
avTrL2 = (bc2['eJnet'] - bc2['wJnet'])/dx

plt.figure()
Plot1d(xvals-10.71, np.full(51, avTrL1[0]), xlabel=None,
       ylabel=None,
       fontsize=16, marker="-.r", markersize=6)
Plot1d(xvals+10.71, np.full(51, avTrL2[0]), xlabel=None,
       ylabel=None,
       fontsize=16, marker="-.b", markersize=6)
Plot1d(xvals-10.71, trl1[0,:], xlabel=None,
       ylabel=None,
       fontsize=16, marker="-r", markersize=6)
Plot1d(xvals+10.71, trl2[0,:], xlabel='position, cm',
       ylabel='Fast Transv. Leakage',
       fontsize=16, marker="-b", markersize=6)
plt.grid()
../_images/NEM_DF_43_0.png
plt.figure()
Plot1d(xvals-10.71, np.full(51, avTrL1[1]), xlabel=None,
       ylabel=None,
       fontsize=16, marker="-.r", markersize=6)
Plot1d(xvals+10.71, np.full(51, avTrL2[1]), xlabel=None,
       ylabel=None,
       fontsize=16, marker="-.b", markersize=6)
Plot1d(xvals-10.71, trl1[1,:], xlabel=None,
       ylabel=None,
       fontsize=16, marker="-r", markersize=6)
Plot1d(xvals+10.71, trl2[1,:], xlabel='position, cm',
       ylabel='Thermal Transv. Leakage',
       fontsize=16, marker="-b", markersize=6)
plt.grid()
../_images/NEM_DF_44_0.png
