AFEN Method

Return to Analytic Function Expansion Nodal Method documentation.

from IPython.display import Image
import matplotlib.pyplot as plt
from matplotlib import rcParams
import numpy as np
import time
# Default values
FONT_SIZE = 16  # font size for plotting purposes
# rcParams['figure.dpi'] = 300
plt.rcParams['figure.figsize'] = [6, 4] # Set default figure size

from analytic_nodal_expansion import AFEN2D, meshPlot, GetSerpentRes
from NEM import CartesianNem1D, Plot1d
import serpentTools

Flux and pin-power reconstruction

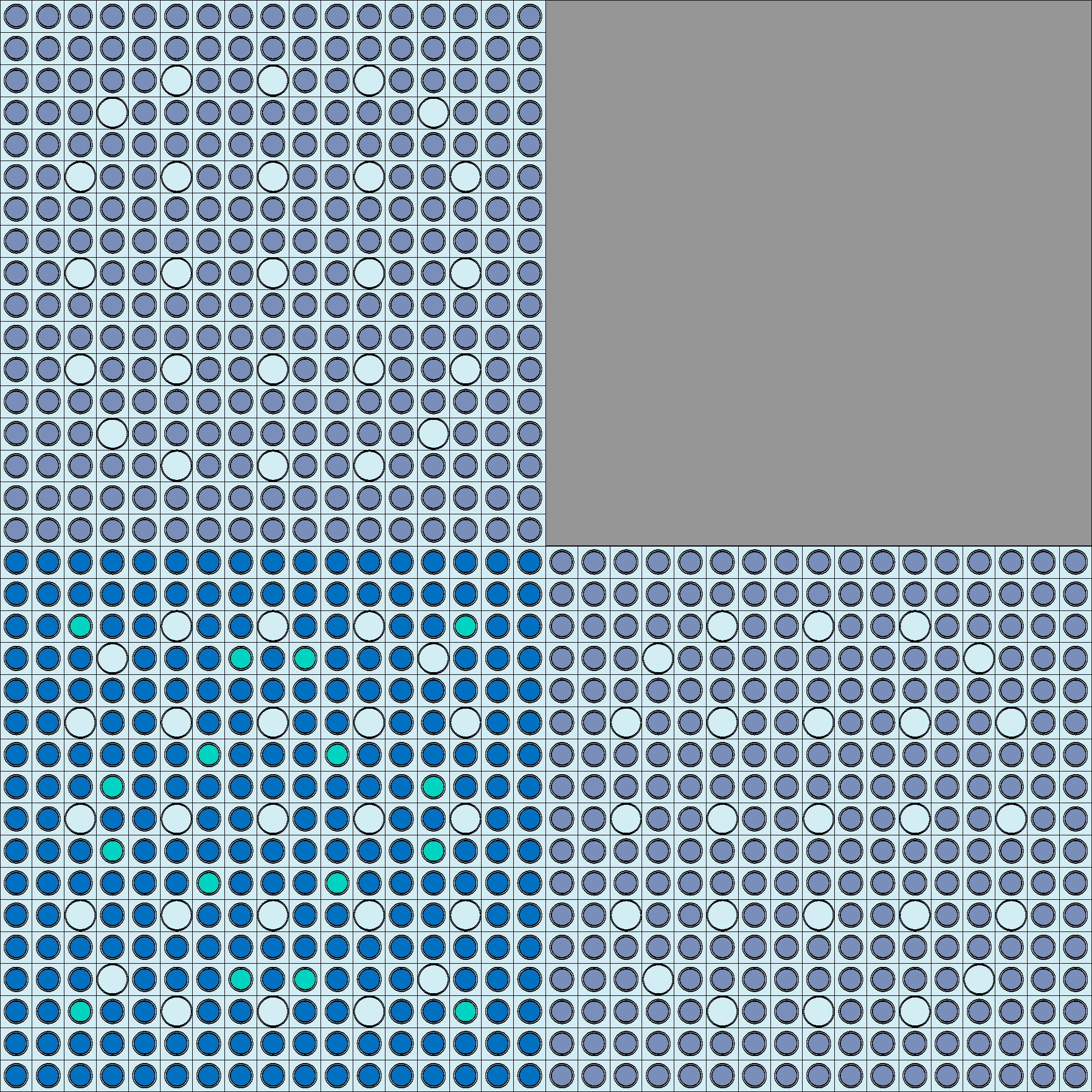

Colorset 2-dim test case

imgFile = './serpent/SMR/SMR_Ref_2D_2g_geom1.png'
resFile = './serpent/SMR/SMR_Ref_2D_2g_res.m'
detFile = './serpent/SMR/SMR_Ref_2D_2g_det0.m'

Image(imgFile,  width=400, height=300)
../_images/AFENMethod_6_0.png

Universes within the colorset: - Upper left F12 - 2.6% \(UO_2\) - Upper right Ref - stainless steel (with water for PWR) - Bottom left F2 - 4.55% \(UO_2\) with 8% \(Gd_2\) \(O_3\) - Bottom right F11 - 2.6% \(UO_2\)

Read detector and results data from Serpent

det = serpentTools.read(detFile)

xsF2, bcF2 = GetSerpentRes(resFile, 'F2', 0)
xsF11, bcF11 = GetSerpentRes(resFile, 'F11', 0)
xsF12, bcF12 = GetSerpentRes(resFile, 'F12', 0)
xsRef, bcRef = GetSerpentRes(resFile, 'Ref', 0)

SERPENT Serpent 2.2.1 found in ./serpent/SMR/SMR_Ref_2D_2g_res.m, but version 2.1.31 is defined in settings
  Attempting to read anyway. Please report strange behaviors/failures to developers.
SERPENT Serpent 2.2.1 found in ./serpent/SMR/SMR_Ref_2D_2g_res.m, but version 2.1.31 is defined in settings
  Attempting to read anyway. Please report strange behaviors/failures to developers.
SERPENT Serpent 2.2.1 found in ./serpent/SMR/SMR_Ref_2D_2g_res.m, but version 2.1.31 is defined in settings
  Attempting to read anyway. Please report strange behaviors/failures to developers.
SERPENT Serpent 2.2.1 found in ./serpent/SMR/SMR_Ref_2D_2g_res.m, but version 2.1.31 is defined in settings
  Attempting to read anyway. Please report strange behaviors/failures to developers.

Store cross sections and bc in dicts

bc = {'F2': bcF2, 'F11': bcF11, 'F12': bcF12, 'Ref': bcRef,}
xs = {'F2': xsF2, 'F11': xsF11, 'F12': xsF12, 'Ref': xsRef,}

dx, dy = 21.42, 21.42  # cm  - assembly length
npins = 17

Manipulate the data provided by Serpent (BC)

Serpent already provodes the het flux values for all the surfaces and corners for each universe.

bcflux = {}
for univ in bc: # defining BC for each universe
    bcflux[univ] = {}
    # store the surface and corner fluxes
    bcflux[univ]['av'] = bc[univ]['flux']

    bcflux[univ]['w'] = bc[univ]['wFlux']
    bcflux[univ]['e'] = bc[univ]['eFlux']
    bcflux[univ]['s'] = bc[univ]['sFlux']
    bcflux[univ]['n'] = bc[univ]['nFlux']

    # bcflux[univ]['nw'] = bc[univ]['nwFlux']
    # bcflux[univ]['ne'] = bc[univ]['neFlux']
    # bcflux[univ]['sw'] = bc[univ]['swFlux']
    # bcflux[univ]['se'] = bc[univ]['seFlux']

    bcflux[univ]['nw'] = bcflux[univ]['n']+bcflux[univ]['w']-bcflux[univ]['av']
    bcflux[univ]['ne'] = bcflux[univ]['n']+bcflux[univ]['e']-bcflux[univ]['av']
    bcflux[univ]['sw'] = bcflux[univ]['s']+bcflux[univ]['w']-bcflux[univ]['av']
    bcflux[univ]['se'] = bcflux[univ]['s']+bcflux[univ]['e']-bcflux[univ]['av']

Manually average the corner fluxes using adjacent fuel assemblies

bcflux['F12']['ne'] = (bcflux['F12']['ne'] + bcflux['Ref']['nw'])/2
bcflux['Ref']['nw'] = bcflux['F12']['ne']

bcflux['F12']['sw'] = (bcflux['F12']['sw'] + bcflux['F2']['nw'])/2
bcflux['F2']['nw'] = bcflux['F12']['sw']

bcflux['F2']['se'] = (bcflux['F2']['se'] + bcflux['F11']['sw'])/2
bcflux['F11']['sw'] = bcflux['F2']['se']

bcflux['F11']['ne'] = (bcflux['F11']['ne'] + bcflux['Ref']['se'])/2
bcflux['Ref']['se'] = bcflux['F11']['ne']

bcflux['F12']['se'] = (bcflux['F12']['se'] + bcflux['Ref']['sw']+
                       bcflux['F2']['ne'] + bcflux['F11']['nw'])/4
bcflux['Ref']['sw'] = bcflux['F12']['se']
bcflux['F2']['ne'] = bcflux['F12']['se']
bcflux['F11']['nw'] = bcflux['F12']['se']

Reconstruct the homogeneous flux

univId = 'F2'  # user needs to choose

timeStart = time.perf_counter()
univres = AFEN2D(xs[univId], bcflux[univId], dx, symbolic=False)
univres.ReconstructFlux()  # a built-in method to obtain the coeffs
timeEnd = time.perf_counter()
print('Reconstructed flux for {} calculated in {} seconds'.format(univId,timeEnd-timeStart))

Reconstructed flux for F2 calculated in 0.001218500008690171 seconds

yvals = np.linspace(-dx/2, +dx/2, npins+1)
yvals = 0.5*(yvals[1:]+yvals[0:-1])

timeStart1 = time.perf_counter()
univres.GetFlux2D(yvals, yvals)
timeEnd1 = time.perf_counter()
print('2D neutron flux for {} calculated in {} seconds'.format(univId,timeEnd1-timeStart1))

2D neutron flux for F2 calculated in 0.005599600001005456 seconds

Reference flux from Serpent

if univId == 'F2':
    fastHetFlux = det.detectors['flux_fast'].tallies[0:npins, 0:npins]
    thermalHetFlux = det.detectors['flux_thermal'].tallies[0:npins, 0:npins]
    fastPower = det.detectors['power_fast'].tallies[0:npins, 0:npins]
    thermalPower = det.detectors['power_thermal'].tallies[0:npins, 0:npins]
elif univId == 'F11':
    fastHetFlux = det.detectors['flux_fast'].tallies[0:npins, npins:]
    thermalHetFlux = det.detectors['flux_thermal'].tallies[0:npins, npins:]
    fastPower = det.detectors['power_fast'].tallies[0:npins, npins:]
    thermalPower = det.detectors['power_thermal'].tallies[0:npins, npins:]
elif univId == 'F12':
    fastHetFlux = det.detectors['flux_fast'].tallies[npins:, 0:npins]
    thermalHetFlux = det.detectors['flux_thermal'].tallies[npins:, 0:npins]
    fastPower = det.detectors['power_fast'].tallies[npins:, 0:npins]
    thermalPower = det.detectors['power_thermal'].tallies[npins:, 0:npins]
elif univId == 'Ref':
    fastHetFlux = det.detectors['flux_fast'].tallies[npins:, npins:]
    thermalHetFlux = det.detectors['flux_thermal'].tallies[npins:, npins:]
    fastPower = det.detectors['power_fast'].tallies[npins:, npins:]
    thermalPower = det.detectors['power_thermal'].tallies[npins:, npins:]

Plot results

  1. Fast flux distribution

  2. Thermal flux distribution

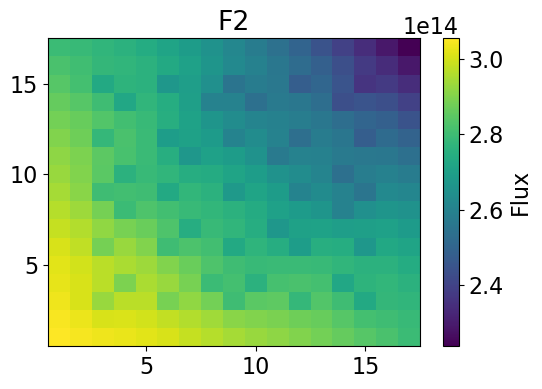

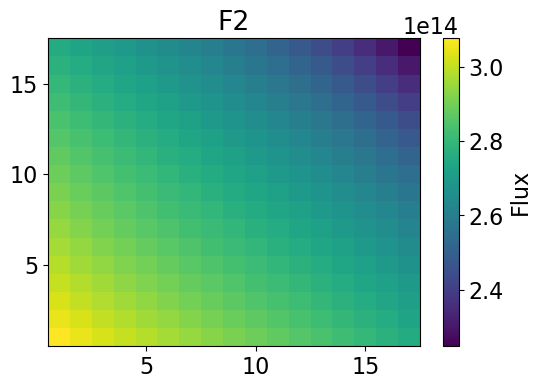

Fast Flux 2-dim

meshPlot(fastHetFlux, 17, univId, 'flux')
meshPlot(univres.flux2d[0], 17, univId, 'flux')
../_images/AFENMethod_27_0.png ../_images/AFENMethod_27_1.png

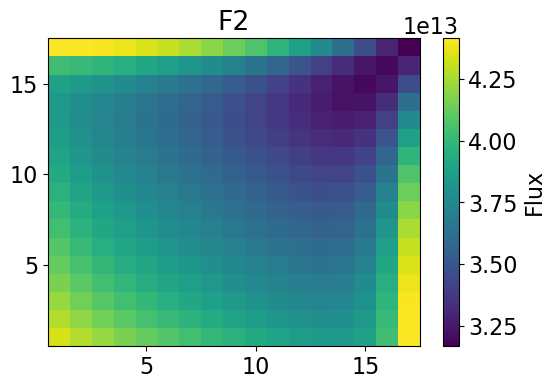

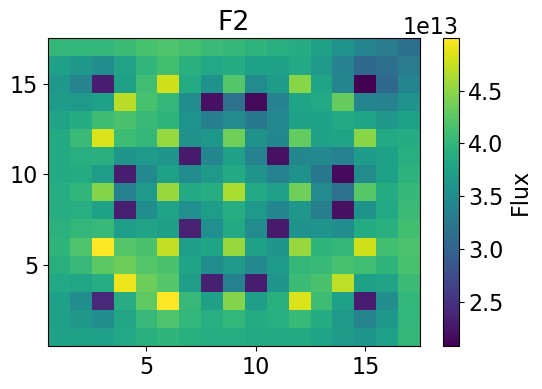

Thermal Flux 2-dim

meshPlot(thermalHetFlux, 17, univId, 'flux')
meshPlot(univres.flux2d[1], 17, univId, 'flux')
../_images/AFENMethod_29_0.png ../_images/AFENMethod_29_1.png

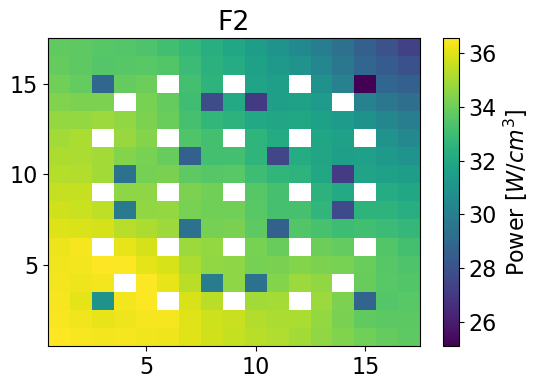

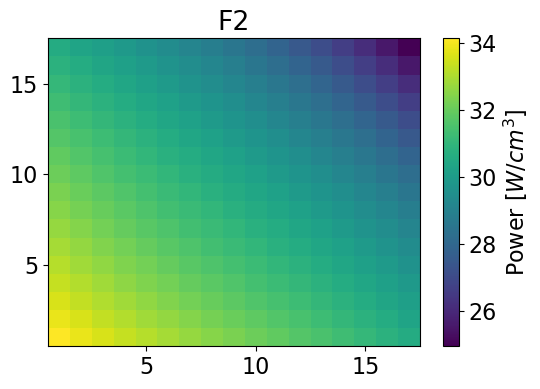

Fast Power 2-dim

meshPlot(fastPower, 17, univId, 'power')
fastPowerHom = univres.HomogeneousPower(univres.flux2d, npins)[0]
meshPlot(fastPowerHom, 17, univId, 'power')
../_images/AFENMethod_31_0.png ../_images/AFENMethod_31_1.png

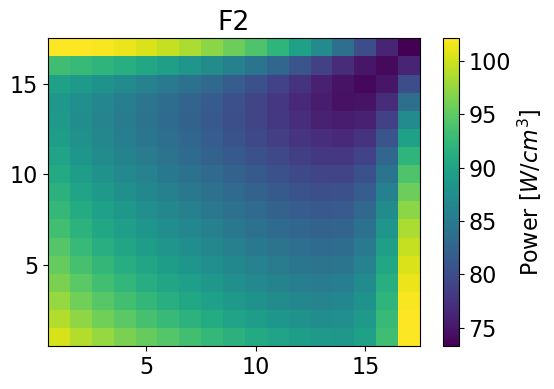

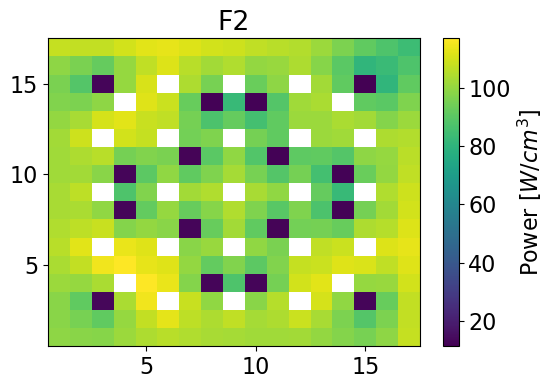

Thermal Power 2-dim

meshPlot(thermalPower, 17, univId, 'power')
thermalPowerHom = univres.HomogeneousPower(univres.flux2d, npins)[1]
meshPlot(thermalPowerHom, 17, univId, 'power')
../_images/AFENMethod_33_0.png ../_images/AFENMethod_33_1.png

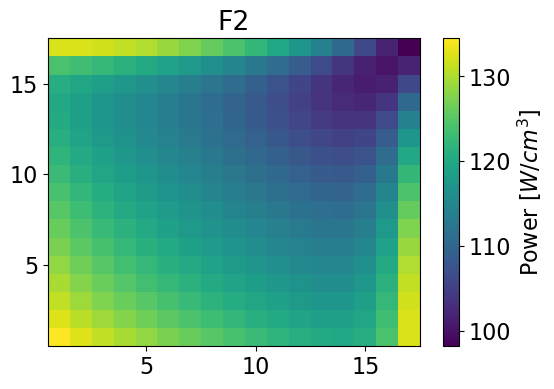

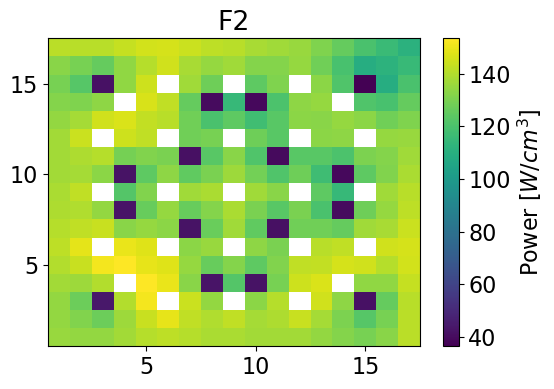

Total Power Plots

serpentPower = fastPower + thermalPower
totalPower = univres.HomogeneousPower(univres.flux2d, npins, total=True)
meshPlot(serpentPower, 17, univId, 'power')
meshPlot(totalPower, 17, univId, 'power')
../_images/AFENMethod_35_0.png ../_images/AFENMethod_35_1.png

Error for homogenized power distributions

# mask = fastPower != 0
# fastPower[fastPower == 0] = np.nan
# relativeError = np.abs(fastPower - fastPowerHom) / fastPower
# # Mask invalid entries with -inf so they’re ignored in max
# maskedError = np.where(mask, relativeError, -np.inf)
# maxRelativeError = np.max(maskedError) * 100
# avRelativeError = np.mean(relativeError[~np.isnan(relativeError)]) * 100
# maxIdx = np.unravel_index(np.argmax(maskedError), maskedError.shape)
# row, col = int(maxIdx[0]), int(maxIdx[1])
# print(f"Max relative error in fast power: {maxRelativeError:.3f}% at index ({row}, {col}) with an average relative error of: {avRelativeError:.3f}%")

# mask = thermalPower != 0
# thermalPower[thermalPower == 0] = np.nan
# relativeError = np.abs(thermalPower - thermalPowerHom) / thermalPower
# # Mask invalid entries with -inf so they’re ignored in max
# maskedError = np.where(mask, relativeError, -np.inf)
# maxRelativeError = np.max(maskedError) * 100
# avRelativeError = np.mean(relativeError[~np.isnan(relativeError)]) * 100
# maxIdx = np.unravel_index(np.argmax(maskedError), maskedError.shape)
# row, col = int(maxIdx[0]), int(maxIdx[1])
# print(f"Max relative error in thermal power: {maxRelativeError:.3f}% at index ({row}, {col}) with an average relative error of: {avRelativeError:.3f}%")

Plot x-dependent y-averaged results for AFEN and NEM

thermalPowerHomX2 = thermalPowerHom.mean(axis=0)
# solve for second region using AFEN Method
univId = 'F11'
tally = det.detectors['flux_fast'].x[:, 1]
fastHetFlux = det.detectors['flux_fast'].tallies[npins:, :]
thermalHetFlux = det.detectors['flux_thermal'].tallies[npins:, :]
fastPower = det.detectors['power_fast'].tallies[npins:, :]
thermalPower = det.detectors['power_thermal'].tallies[0:npins]
univres = AFEN2D(xs[univId], bcflux[univId], dx, symbolic=False)
univres.ReconstructFlux()  # a built-in method to obtain the coeffs
univres.GetFlux2D(yvals, yvals)

thermalPowerHomX11 = univres.HomogeneousPower(univres.flux2d, npins)[1].mean(axis=0)

# build out NEM solutions for two regions
fastHetFluxNEM = det.detectors['flux_fast'].tallies[npins:].mean(axis=0)
thermalHetFluxNEM = det.detectors['flux_thermal'].tallies[npins:].mean(axis=0)
universesNEM = ['F2', 'F11']
xs1, bc1 = GetSerpentRes(resFile, universesNEM[0], timeDays=0)
xs2, bc2 = GetSerpentRes(resFile, universesNEM[1], timeDays=0)

# Left assembly solution
trLeakage1 = {}
trLeakage1['eL'] = bc2['nJnet'] - bc2['sJnet']
trLeakage1['eD'] = xs2['diff']
trLeakage1['edx'] = dx
trLeakage1['wL'] = bc1['nJnet'] - bc1['sJnet']
trLeakage1['wD'] = xs1['diff']
trLeakage1['wdx'] = dx
nem1 = CartesianNem1D(dx, dy, xs1, bc1, trLeakage1, symbolic=False)
nem1.TransverseLeakageCoef('x')  # obtain the coefficients of the TL
nem1.GetExpansionCoeffs('x', 'diff')
xvals = np.linspace(-dx/2, +dx/2, npins+1)
xvals = 0.5*(xvals[1:]+xvals[0:-1])
flux1 = nem1.GetHomogFlux(xvals)

# Right assembly solution
trLeakage2 = {}
trLeakage2['wL'] = bc1['nJnet'] - bc1['sJnet']
trLeakage2['wD'] = xs1['diff']
trLeakage2['wdx'] = dx
trLeakage2['eL'] = bc2['nJnet'] - bc2['sJnet']
trLeakage2['eD'] = xs2['diff']
trLeakage2['edx'] = dx
nem2 = CartesianNem1D(dx, dy, xs2, bc2, trLeakage2, symbolic=False)
nem2.TransverseLeakageCoef('x')  # obtain the coefficients of the TL
nem2.GetExpansionCoeffs('x', 'diff')
flux2 = nem2.GetHomogFlux(xvals)

SERPENT Serpent 2.2.1 found in ./serpent/SMR/SMR_Ref_2D_2g_res.m, but version 2.1.31 is defined in settings
  Attempting to read anyway. Please report strange behaviors/failures to developers.
SERPENT Serpent 2.2.1 found in ./serpent/SMR/SMR_Ref_2D_2g_res.m, but version 2.1.31 is defined in settings
  Attempting to read anyway. Please report strange behaviors/failures to developers.

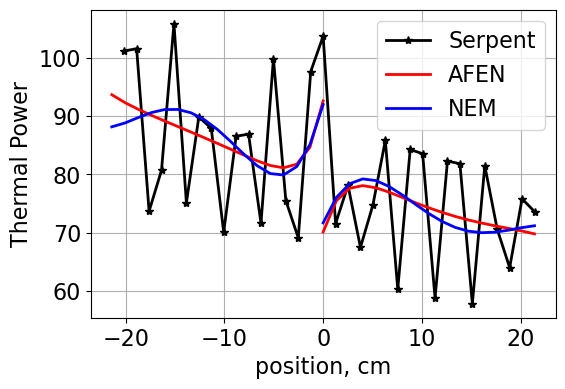

# Plot all methods for comparison
xvals = np.linspace(-dx/2, +dx/2, npins)
plt.figure()
Plot1d(tally, thermalPower.mean(axis=0), xlabel="position, cm",
       ylabel='',
       fontsize=16, marker="-*k", markersize=6, linewidth=2, label="Serpent")
Plot1d(xvals-10.71, thermalPowerHomX2, xlabel="position, cm",
       ylabel='Fast Flux',
       fontsize=16, marker="-r", markersize=6, linewidth=2, label="AFEN")
Plot1d(xvals+10.71, thermalPowerHomX11, xlabel="position, cm",
       ylabel='Fast Flux',
       fontsize=16, marker="-r", markersize=6, linewidth=2, label="_nolegend_")
Plot1d(xvals-10.71, xs1['kappa'][1]*1.60218e-13*xs1['fiss'][1]*flux1[1,:], xlabel="position, cm",
       ylabel=None,
       fontsize=16, marker="-b", markersize=6, linewidth=2, label='NEM')
Plot1d(xvals+10.71, xs2['kappa'][1]*1.60218e-13*xs2['fiss'][1]*flux2[1,:], xlabel="position, cm",
       ylabel='Thermal Power',
       fontsize=16, marker="-b", markersize=6, linewidth=2, label="_nolegend_")
plt.legend()
plt.grid(visible=True)
../_images/AFENMethod_42_0.png
